16 pc  8mm Shank Dovetail and Straight Router Bit Set For Leigh Jig



Click to see larger photo


　
Brand new, high quality, industrial grade
It has 11 dovetail bits, 3 straight bits and 2 Collet adaptors.
There are 10 bits with 8mm Shank, 4 bits with 1/2" Shank and 2 1/2" to 8mm Collet Adaptor.  Comes in sturdy wooden box for storage. The extra strength and stiffness of 8mm shanks makes this bit collection ideal for high-volume professional work and for those who work in hard wood.

This dovetail set includes all the router bits needed to use for Leigh  D4, D4R and D1600 Jig to make drawers, chests, or any other project.

C2 Carbide Tipped - Micro grain grade provides increased strength and utmost resistance

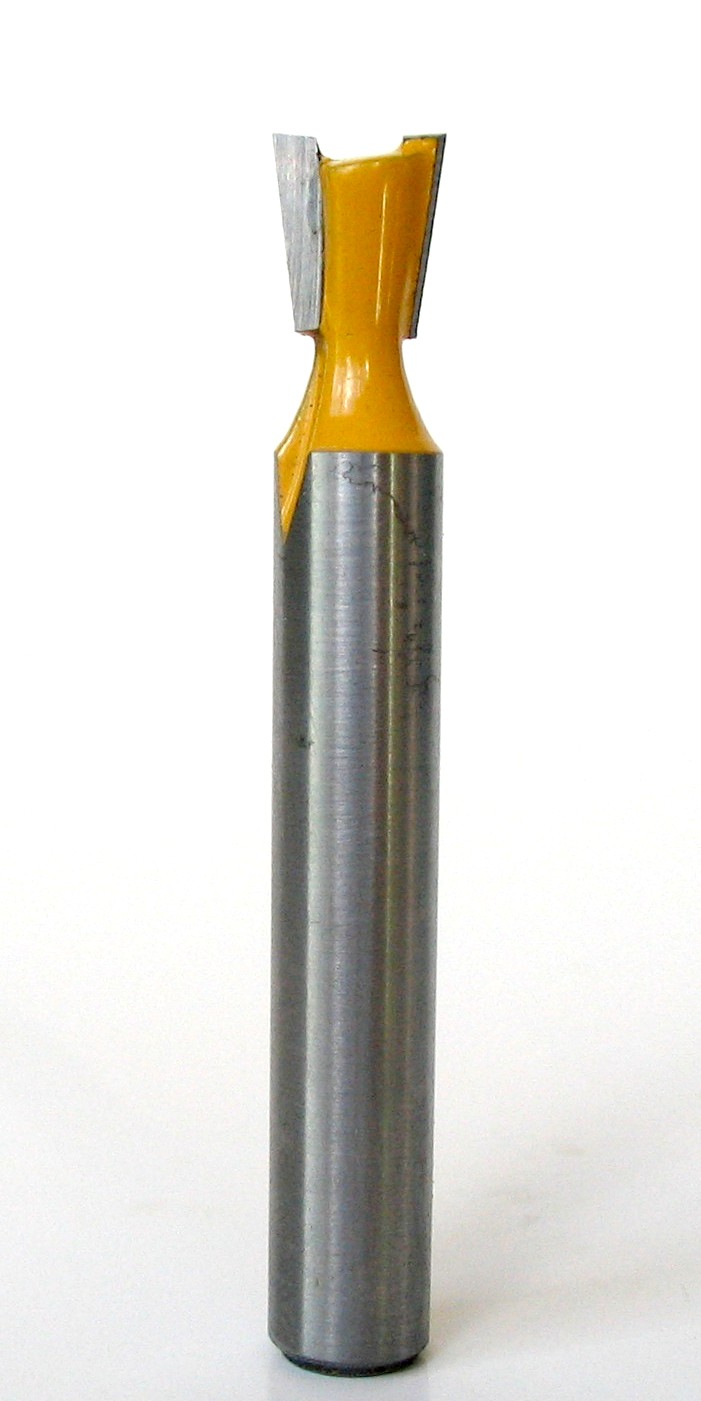

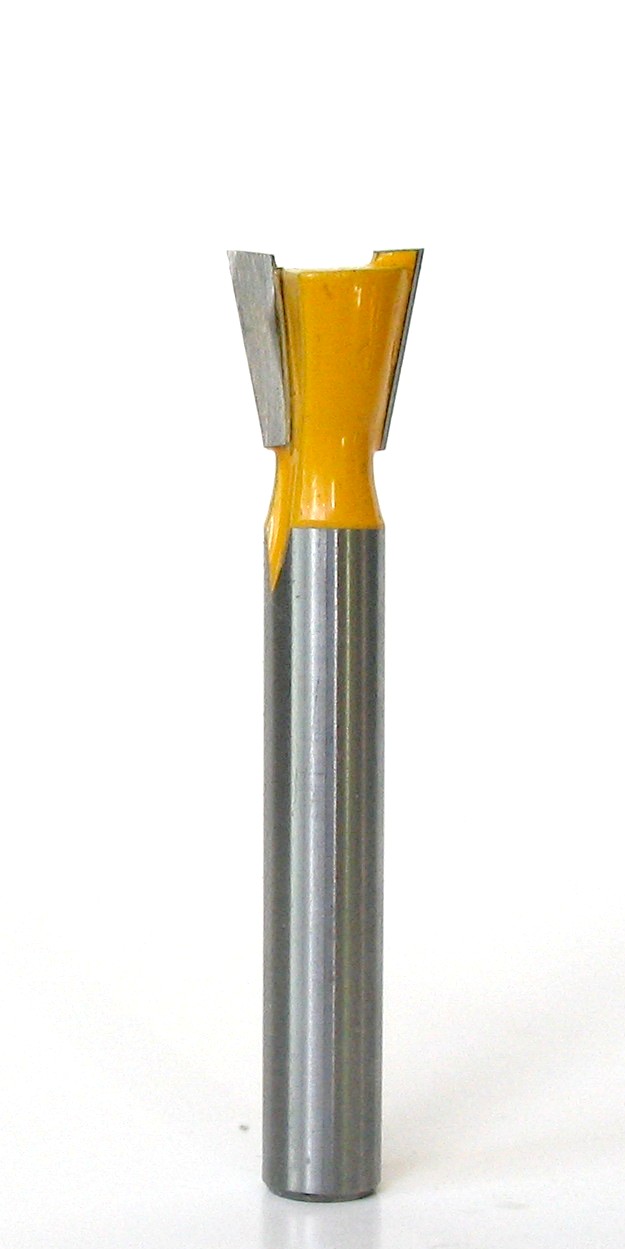

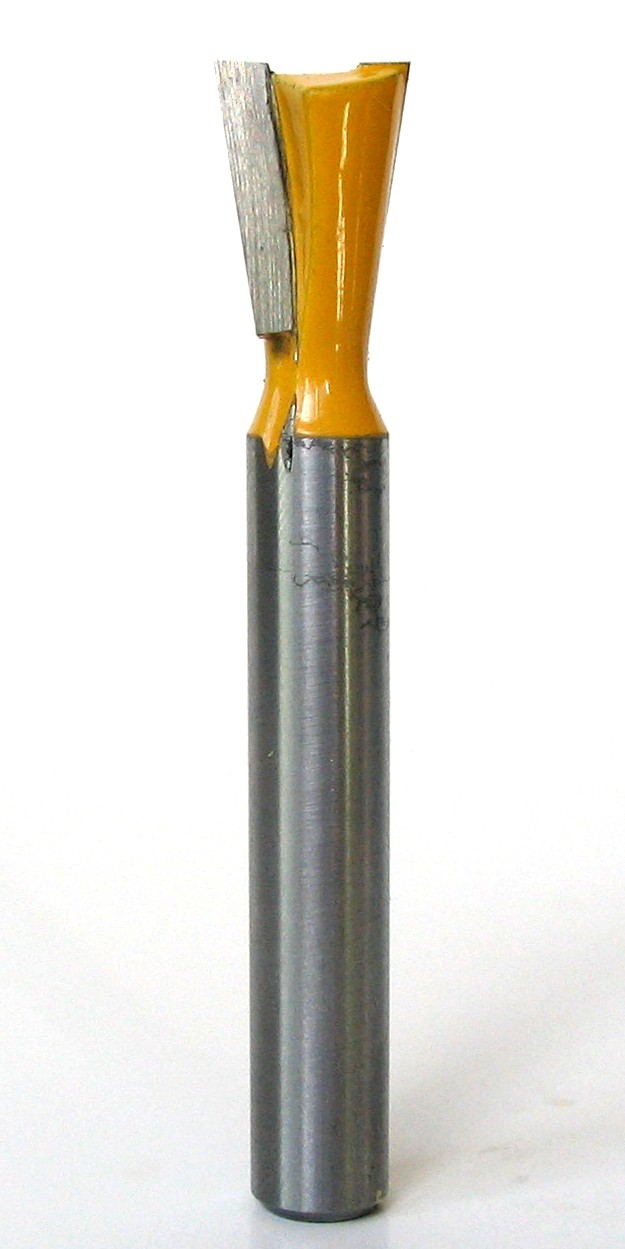

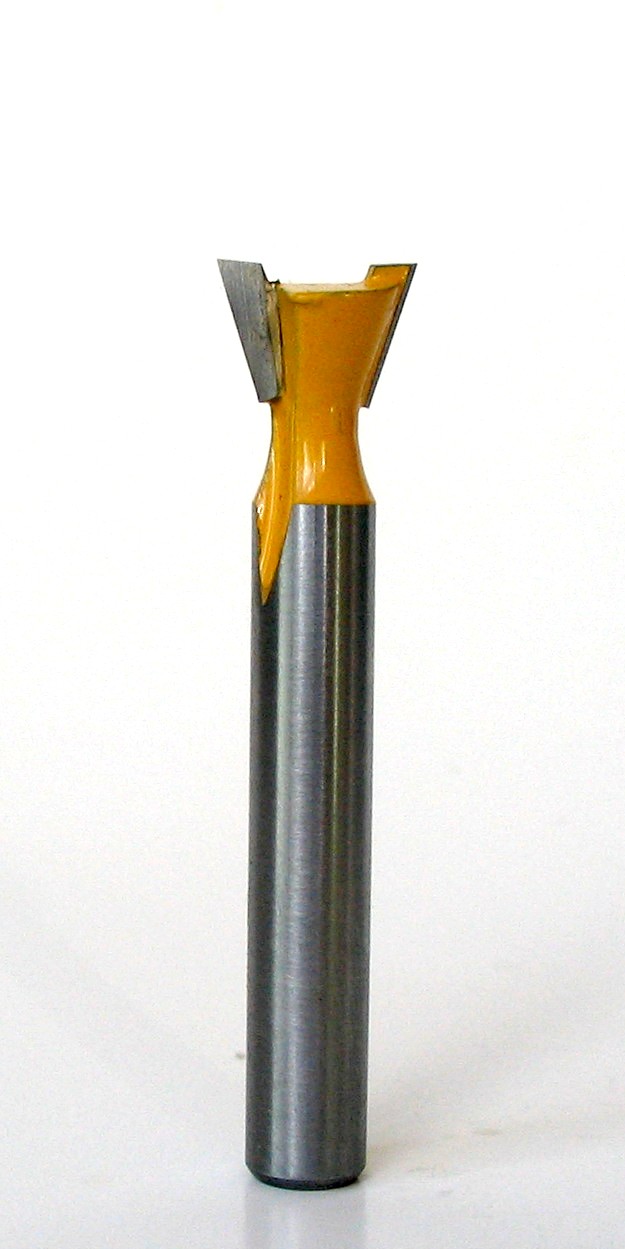

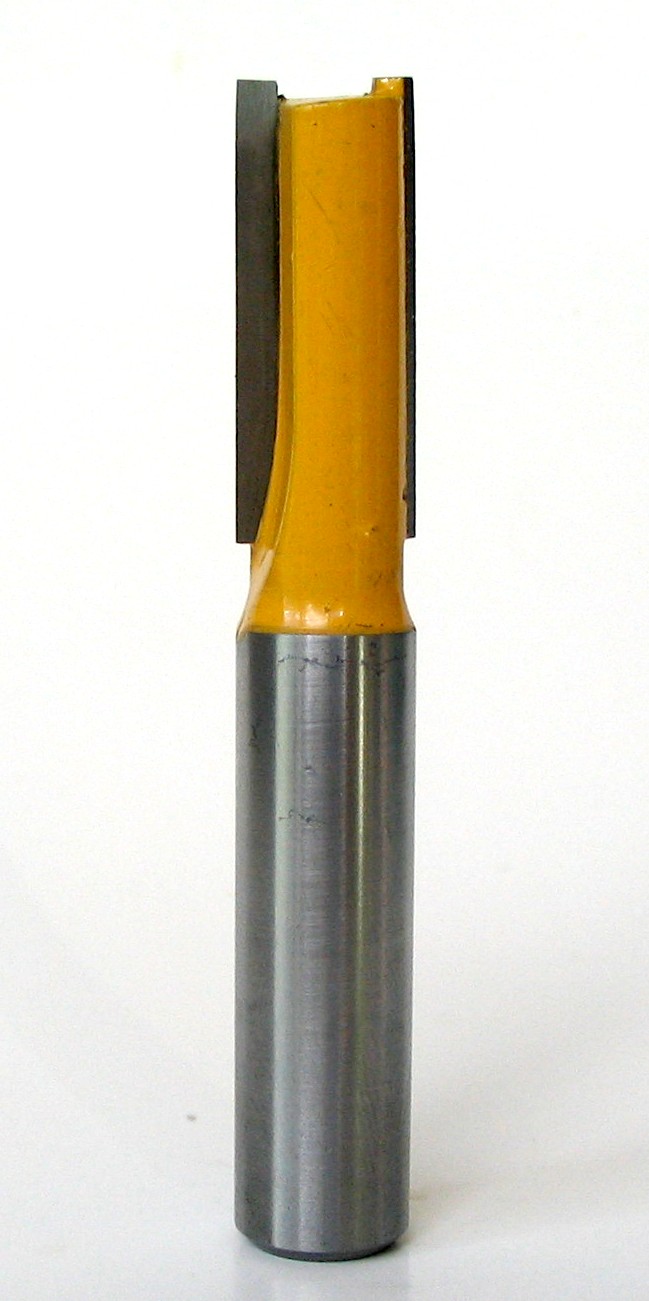

16 pc Dovetail & Straight Router Bit Set and Box
Details


8＜ Dovetail Bit

8＜ Dovetail Bit

8＜ Dovetail Bit

8＜ Dovetail Bit

8＜ Dovetail Bit

12＜ Dovetail Bit

14＜ Dovetail Bit

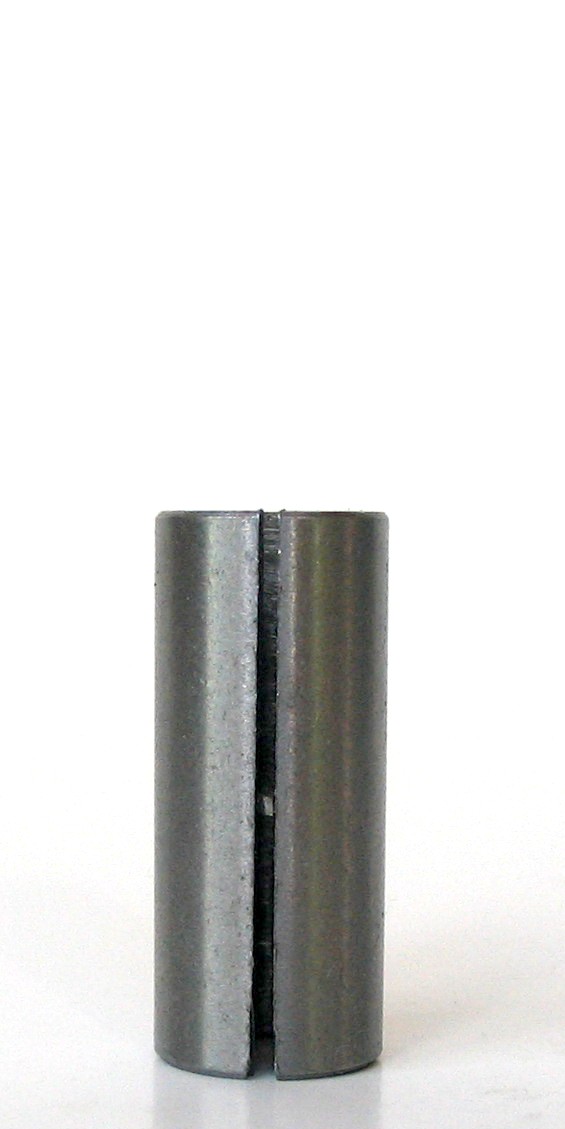

Adaptor

1/4"x1/4"

5/16"x3/8"

3/8"x1/2"

7/16"x5/8"

1/2"x13/16"

1/2"x1/2"

1/2"x7/16"

1/2" to 8mm"

#50-8

#60-8

#70-8

#75-8

#80-8

#112-8

#120-8

#172-8

18＜ Dovetail Bi

10＜ Dovetail Bit

Straight Bit

Straight Bit

Straight Bit

8＜ Dovetail Bit

8＜ Dovetail Bit

Adaptor

1/2"x3/8"

1/2"x5/8"

5/16"x1"

7/16"x1-1/4"

1/2"x1-1/4"

11/16"x1"

13/16"x1-1/4"

1/2" to 8mm

#128-8

#101-8

#140-8

#150

#160

#90

#100

#172-8

　

　 Router Bit Leigh # Bit Dia. Shank Dia. Tip Length Dove Angle Overall Length Shank Length
1 Dovetail #50-8 1/4" 8mm 1/4" 8＜ 2" 1-3/4"
2 Dovetail #60-8 5/16" 8mm 3/8" 8＜ 2-1/8" 1-3/4"
3 Dovetail #70-8 3/8"  8mm 1/2" 8＜ 2-1/4" 1-3/4"
4 Dovetail #75-8 7/16"  8mm 5/8" 8＜ 2-3/8" 1-3/4"
5 Dovetail #80-8 1/2"  8mm 13/16" 8＜ 2-9/16" 1-3/4"
6 Dovetail #90 11/16"  1/2" 1" 8＜ 2-3/4" 1-3/4"
7 Dovetail #100 13/16"  1/2" 1-1/4" 8＜ 3" 1-3/4"
8 Dovetail #101-8 1/2"  8mm 5/8" 10＜ 2-3/8" 1-3/4"
9 Dovetail #112-8 1/2"  8mm 1/2" 12＜ 2-5/16" 1-3/4"
10 Dovetail #120-8 1/2"  8mm 7/16" 14＜ 2-1/4" 1-3/4"
11 Dovetail #128-8 1/2"  8mm 3/8" 18＜ 2-1/8" 1-3/4"
12 Straight #140-8 5/16"  8mm 1" -- 2-3/4" 1-3/4"
13 Straight #150 7/16"  1/2" 1-1/4" -- 3" 1-3/4"
14 Straight #160 1/2"  1/2" 1-1/4" -- 3" 1-3/4"
15 Adaptor #172-8 8mm(ID) 1/2"(OD) 　 　 　 1-3/16"
16 Adaptor #172-8 8mm(ID) 1/2"(OD) 　 　 　 1-3/16"

　

　
More detail information of Leigh Jig to see on  Leigh Industries

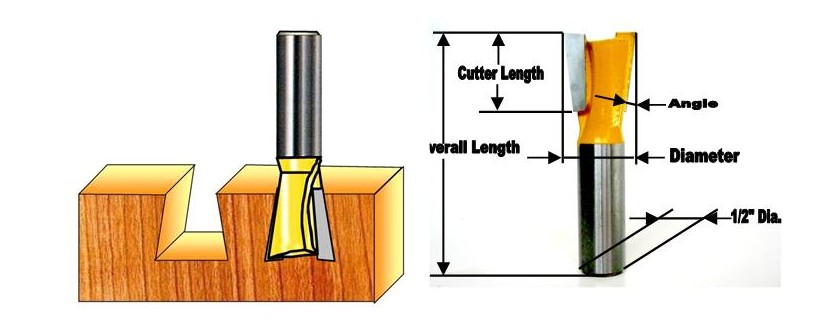

Dimension

Top View

　
　 　 　

　

　
Shipping
Shipping to anywhere in the continental US is $12.50 (this amount includes handling and insurance). We combine items for reduced shipping cost. You pay the full price for first item (highest shipping charge), $5 for second item, $3 for third one and free shipping for the remaining items.

For Canadian shipping, it's $14.00  for USPS First Class International.

I will ship to worldwide. Please email me to get Shipping cost before you bid.

All shipments are usually made within 24 hours of receiving payment during regular business days
Payment
We accept payments through PayPal.
　
