My goal is to give my customer best value tools with best service. Let every body can have good quality router bit with reasonable price to enjoy your creative woodworking skill. Please let me know your feedback after you shopping with my store and come back again.
　
Store categories
Hide all subcategories
New product Specials Clearance About us

5 pc 1/4" Shank Dovetail and Straight Standard Router Bit Set for Keller Jig Model 1500 Journeyman and Model 1601 Pro Series

　

Click to see larger photo

Brand new, high quality, industrial grade

1/4" Shank two Top Bearing 7 ＜ Dovetail Router Bit and three Top Bearing Straight Router Bit.

This dovetail set includes all the router bits needed to use for Keller 1500 Journeyman and Model 1601 Pro Series to make drawers, chests, or any other project.

Comes in sturdy wooden box for storage

C2 Carbide Tipped - Micro grain grade provides increased strength and utmost resistance

5 pc of 1/4" Shank Top Bearing Router Bit for  Keller Jig
Keller#1531/1631 Keller#1533/1633 Keller#1541/1641 Keller#1542/1642 Keller#1543/1643
11/32"x3/8"x7＜ 7/16"x3/4"x7＜ 5/8"x1/2" 9/16"x3/4" 5/8"x3/4"

　
No. Router Bit Keller # Bit Dia. Shank Dia. Tip Length Dove Angle Overall Length Shank Length
1 Dovetail 1531/1631 11/32" 1/4" 3/8" 7＜ 2-1/4" 1-5/8"
2 Dovetail 1533/1633 7/16" 1/4" 3/4" 7＜ 2-5/8" 1-5/8"
3 straight 1541/1641 5/8" 1/4" 1/2" -- 2-1/4" 1-5/8"
4 straight 1542/1642 9/16" 1/4" 3/4" -- 2-5/8" 1-5/8"
5 straight 1543/1643 5/8" 1/4" 3/4" -- 2-3/4" 2"

　
Details

Dovetail Bit with Upper Ball Bearing    (1531/1631)
Shank Diameter 1/4"
Cutter Diameter 11/32"
Cut Depth 3/8"
Bearing Diameter 5/8"
Total Length 2.250"

Dovetail Bit with Upper Ball Bearing    (1533/1633)
Shank Diameter 1/4"
Cutter Diameter 7/16"
Cut Depth 3/4"
Bearing Diameter 5/8"
Total Length 2.655"

Straight Bit with Upper Ball Bearing   (1541/1641)
Shank Diameter 1/4"
Cutter Diameter 5/8"
Cut Depth 3/4"
Bearing Diameter 5/8"
Total Length 2.250"

Straight Bit    with Upper Ball Bearing (1542/1642)
Shank Diameter 1/4"
Cutter Diameter 9/16"
Cut Depth 3/4"
Bearing Diameter 5/8"
Total Length 2.577"
Straight Bit with Upper Ball Bearing(1543/1643)
Shank Diameter 1/4"
Cutter Diameter 5/8"
Cut Depth 3/4"
Bearing Diameter 5/8"
Total Length 2.773"

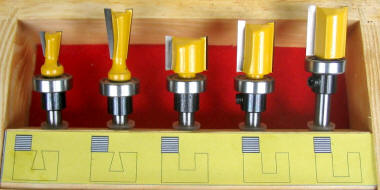

5 pc of Dovetail Router Bit set and Box
More Detail to check Keller Jig
Shipping
Shipping to anywhere in the continental US is $10.00 (this amount includes handling and insurance). We combine items for reduced shipping cost. You pay the full price for first item (highest shipping charge), $5 for second item, $3 for third one and free shipping for the remaining items!

For Canadian shipping, it's $11.00  for USPS Airmail letter Post.

I will ship to worldwide. Please email me to get Shipping cost before you bid.

All shipments are usually made within 24 hours of receiving payment during regular business days.

　
Payment
We accept payments through PayPal.

　
　
　

　
